IZYLUM

A time-saving, versatile and high-performing street lighting solution

Description

IZYLUM is a range of robust yet compact outdoor LED luminaires, designed with a focus on easy installation and maintenance.
Based on Schréders proven track record in road and urban LED lighting, the IZYLUM luminaires benefit from numerous innovations to provide the ultimate experience for municipalities, utilities, contractors and citizens.
Available in various sizes, IZYLUM provides a well-dimensioned, efficient outdoor lighting solution ranging for various low-height applications such as parks, bicycle paths or residential streets to main roads and boulevards.
This connected-ready luminaire offers a realistic platform for smart cities. Its’ lightweight optimised design minimises the carbon footprint at every stage of the product lifecycle. IZYLUM stands out as the best in class for a circular economy.

  • Easy opening/closing
  • The luminaire can be opened without any tools thanks to two stainless steel spring clamps. A clear, loud clicking sound confirms that the luminaire is closed.

  • Easy handling
  • Set up, optimise and maintain your IZYLUM luminaires in the easiest and cost-effective way with the Circle Light Application. This tool enables instant access to your luminaire information (geolocalisation and configuration data), fast wireless settings (contactless driver programming) and assets remote-managing (lighting installation monitoring). Simplify, ease and optimise your lighting installation management, anywhere, in one hand, with the Schréder Circle Light Application.

  • Easy mounting
  • Thanks to the IzyFix universal mounting part, the luminaire can be installed vertically on the spigot for a post-top mounting to facilitate the operation (no cantilevered weight). Then, it can be tilted to the right angle. The IzyFix system enables switching from one position to another at any time, without removing the luminaire from the pole.

  • Easy adjustment
  • IzyFix enables settings for side-entry and post-top mounting over a range of 130 degrees (5-degree steps). The indication angle on the IzyFix mounting part enables the correct tilting position to be set before final tightening.

A new generation of photometrical engines

IZYLUM introduces a new generation of photometrical engines developed around performance, compactness, versatility and a platform philosophy.
LensoFlex®4 is the fourth generation of the proven Schréder LensoFlex® concept based on high-power LEDs to meet the lighting requirements of road and urban applications while maximising energy savings.

Best-in-class for a circular economy

IZYLUM stands out as the best in class for a circular economy as the strict Circle Light Label assessment on 12 criteria demonstrates. The IZYLUM circular score is remarkable, not only due to its high efficiency but also because of 6 circular features:
- robust mechanical structure enabling high IP and IK ratings
- fully recyclable materials
- less than 5 steps for complete disassembly
- tool free opening of the gear compartment for easy maintenance,
- versatile connectivity with standard sockets and
- 25-year product life expectancy.

A Zhaga-D4i certified range of luminaires

As a founding member of the Zhaga consortium, Schréder has participated in the creation of Zhaga-D4i certification program and the initiative of this group to standardise an interoperable ecosystem. The D4i specifications take the best of the standard DALI2 protocol and adapt it to an intra-luminaire environment.
As Zhaga-D4i certified luminaires, the IZYLUM range complies with all the criteria including mechanical fit, digital communication, data reporting and power requirements within a single luminaire, ensuring plug-and-play interoperability of luminaires and peripherals such as connectivity nodes.
The IZYLUM luminaires can include two sockets allowing, for instance, the combination of a presence sensor and a control node.

Solar-powered lighting

Schréder EKINOX powered by Sunna Design is an eco-friendly solar lighting solution that combines renewable energy production with Schréder's renowned LensoFlex®4 photometries, achieving optimal lighting levels while reducing carbon emissions and preserving the environment. This stand-alone solution consists of three SE smart solar kits (with two battery capacity options and intelligent in-built electronics) paired with dedicated IZYLUM luminaires that are equipped with 20 to 80 high-power LEDs.

Characteristics

Recommanded installation height (m)
4.0 -
15.0
Surge protection (kV)
10
8
6
Control protocol(s)
Associated control system(s)
Sensor(s)
Luminaire output flux (lm)
700 -
40000
Power consumption (W)
7.0 -
280.0
Luminaire efficacy - up to (lm/W)
187
Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult us.
ULR may be different according to the configuration. Please consult us.
Housing
Aluminium
Optic
Protector
Tempered glass
Tightness level
Impact resistance
Lifetime may be different according to the size/configurations. Please consult us.
Operating temperature range (Ta)
-40°C up to +55°C / -40°F up to 131°F with wind effect
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

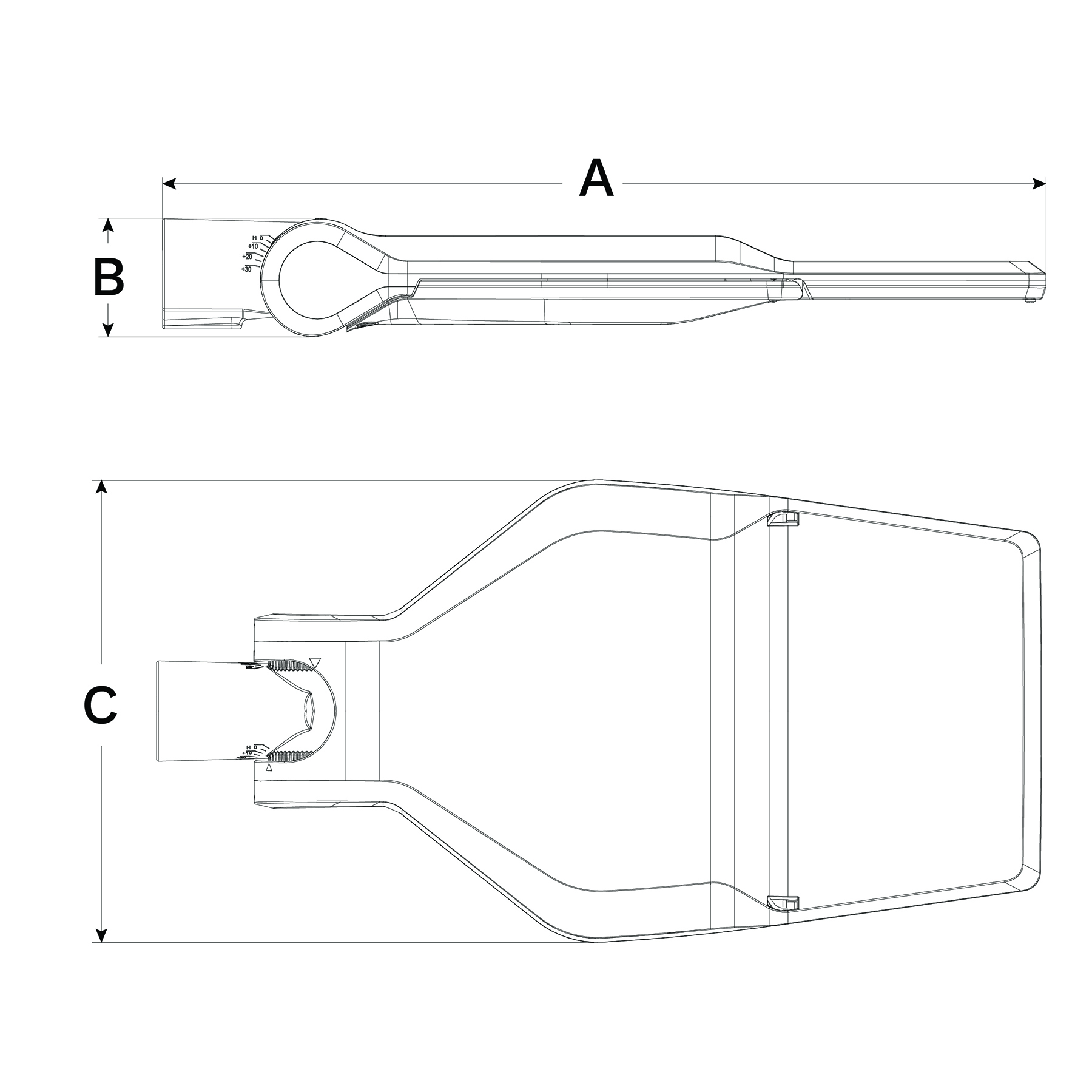

AxBxC (mm | inch)
IZYLUM 1 : 587x94x294 | 23.1x3.7x11.6
IZYLUM 2 : 604x94x352 | 23.8x3.7x13.9
IZYLUM 3 : 715x94x368 | 28.1x3.7x14.5
IZYLUM 4 : 873x94x390 | 34.4x3.7x15.4
IZYLUM 5 : 873x94x390 | 34.4x3.7x15.4
Weight (kg | lbs)
IZYLUM 1 : 4.9-5.9 | 10.8-13.0
IZYLUM 2 : 6.3-7.3 | 13.9-16.1
IZYLUM 3 : 7.0-8.3 | 15.4-18.3
IZYLUM 4 : 9.9-12.1 | 21.8-26.6
IZYLUM 5 : 10.3-12.6 | 22.7-27.7
Mounting possibilities
Side-entry slip-over – Ø48mm
Side-entry penetrating – Ø60mm
Side-entry slip-over – Ø60mm
Post-top slip-over – Ø76mm
Post-top penetrating – Ø60mm
Post-top slip-over – Ø32mm
Post-top slip-over – Ø48mm
Side-entry slip-over – Ø32mm
Side-entry slip-over – Ø42mm
Post-top slip-over – Ø60mm

Control systems

A connected-ready solution

The IZYLUM street luminaires are available with the following control/dimming options:
• Bi-power
• AMPDIM
• Custom dimming profile
• 1 - 10V
• DALI
• Remote management

As an option, this outdoor LED luminaire can be equipped with standard NEMA 7-pin or low-voltage sockets, enabling easy access to the digital era of lighting with advanced lighting features that plan, monitor and control outdoor lighting networks.

Control link

Installation and Maintenance

IzyFix: the most versatile mounting

IZYLUM is available with the IzyFix universal fixation adapted to post-top and side-entry mounting on any spigot (Ø32mm, Ø42-48mm, Ø60mm and Ø76mm).
Thanks to a tilting range of 130°, IzyFix enables switching from one position to another at any time, without removing the luminaire from the pole.
This unique feature eases installation and offers complete versatility for pole and bracket configurations.

Penetrating fixation

IZYLUM is available with a dedicated penetrating fixing part designed for a Ø60mm tube.

Poles and Brackets

KEMA range of dedicated brackets

Designed to be combined with the IZYLUM luminaires, the KEMA range of brackets offers a modern and elegant design to upgrade your lighting furniture.
This family of brackets made of die-cast aluminium adapts to your landscape by offering multiple variants (single or double).
